MyRTK
network is an effort to use real-time survey
technology for the enhancement of many services
and dissemination of various geodetic products |
|
The
Department of Survey and Mapping Malaysia (JUPEM)
is the competent authority in providing both horizontal
and vertical survey control to the surveying community
in Malaysia. This is carried out through the setting
up of a surveying infrastructure throughout the
country for the eventual purpose of national development,
security and defence. In line with the government’s
endeavour to improve its delivery mechanism, there
have been many initiatives made by JUPEM. One
of them is the effort made to use real-time survey
technology for the enhancement of its many services
and dissemination of various geodetic products
rendered by the department.
From 1997 to 2000, JUPEM has set up a permanent
GPS network known
as Malaysia Active GPS System (MASS) which consists
of eighteen (18) stations located at a spacing
of 200 - 300 km from each other. Each station
of the network is equipped with a high precision
dual frequency GPS receiver that is operational
24 hours daily. The acquired GPS data is transferred
on a daily basis to the Central Processing Centre
at JUPEM’s Headquarters in Kuala Lumpur
via modem/internet. This permanent GPS stations
network is an integrated geodynamic network and
the zero order network for the realization of
the National Coordinate Reference Frame, which
is known as the Geocentric Datum of Malaysia 2000
(GDM2000).
Presently, MASS provides an excellent frame of
reference for geodetic positioning in Malaysia,
and several kinematic applications have been carried
out by post-processing thedata. However, the possibility
of having realtime access to the data observed
by the GPS network would dramatically and clearly
increase its synergy with land surveying activities.
For instance, it would allow the use of GPS for
centimeter positioning over the entire territory
of Malaysia through the broadcasting of RTK corrections. |
| Existing Scenario |
Real-Time
Kinematic (RTK) is now widely used for surveying
and other precise positioning applications. The
classical RTK technique requires that GPS data
be transmitted from a single base receiver to
one or more roving units.
RTK can provide centimeter position accuracy,
but the accuracy and reliability of the standard
RTK solution decreases with increasing distance
from the Base Station. This limitation on the
distance between the roving GPS receiver and the
RTK Base Station is due to the systematic effects
of ephemeris, tropospheric and ionospheric errors.
These systematic errors result in reduced accuracy
and increasing initialization time as the distance
between base and rover increases.
Besides the aforementioned constraint, the limitation
is also due to the range of available radio telemetry
solutions. In practice, this means that a temporary
RTK Base Station must be established close to
the work area, often at a location that does not
provide any physical security or continuous power
supply. Each time such a temporary reference station
is established, there is a likelihood of introducing
an error in the reference station coordinates
that will be transferred into the position calculated
by the rover RTK receiver. Such an error can easily
go undetectedwhen using a single base station. |
| Objectives |
In order
to take full advantage of the real-time capabilities
of the RTK network, MyRTKnet has been designed
with the following objectives:
i. To establish a network of permanently running
GPS base stations, at a spacing of 30 to 150 km,
feeding GPS data to a processing centre via frame-relay
IPVPN communication network.
ii. To establish a central facility that will
model the spatial errors which limit GPS accuracy
through a network solution and generate corrections
for roving receivers positioned anywhere inside
the network with an accuracy better than a few
centimeters (dense network) to a few decimeters
(sparse network) in real time.
iii. To establish a web site that will make available
near real time (1 - 3
hours) reference station data to the users for
post-processing differential GPS throughout the
coverage area. |
| Network design |
| Objectives |
The primary
goals in designing the system were for efficient
and easy operations, facilitate user understanding
of the network and for expandability. Some empirical
numerical limits have been suggested for IP addressing
and efficient operation of the system. The networking
protocol used is the Internet Protocol (IP).
Though contained in a single private network,
the system was split into 2 subnets which is not
representative of classical IP subnet class. As
such this network is considered as ‘classless’.
Each subnet consists of all reference stations
and the Control Center (also referred to as central
control or CC). |
| Malaysia
Real Time Kinematic GPS Network (MyRTKnet) |
The RTK
Network Solution concept is based on having a
network of twenty-seven (27) GPS reference stations
continuously connected via IP VPN to a Control
Centre (Figure 1). The computer processor at the
Control Centre continuously gathers the information
from all GPS receivers, and creates a living database
of Regional Area Corrections. |
 |
| Physical
Communications |
The physical
communications infrastructure is provided by the
IPVPN over COINS frame relay system. This system
works by connecting any respective site into the
Telekoms Malaysia frame relay network. The service
is available throughout Malaysia except for some
isolated locations. The advantage of using IPVPN
verses point to point leased lines is that IPVPN
will require only a single high speed connection
and modem at the Central Control rather than a
connection comprising of a modem and separate
leased line for each station. A schematic representation
of the system communications is shown in Figure
2 |
 |
| Reference
stations |
| Physical Enclosure |
The physical
enclosure for the equipment at each site is a
small structure or allocated room of approximately
3m x 4m. This room is being cooled by 2 air conditioners
that alternate during the day such that the total
time that any one unit is on over the entire day
is 12 hours. |
| System Schematic |

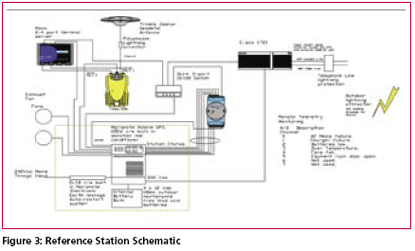

The system schematic for the
reference
stations are shown in Figure 3.
The Reference Station
consists of the following: • Cisco 1721
router • Dlink 5 port 100/10M switch
• Trimble 5700 CORS with Zephyr antenna
• Moxa 5410 terminal server • Advantech
Adam 6017 A/D module • Micromate UPS for
minimum 2 days backup power • Satelit
lightning protection
The system is designed for
autonomous operation and is able to
run for 48 hours without power. |
 |
| |
