Interest in the use of Global Navigation Satellite Systems (GNSS) as a main source of navigation reference is increasing. The system employed for such a purpose should be capable of meeting the requirements of air navigation in terms of accuracy, availability, integrity, and reliability. At present, the accuracy requirements for all ?ight categories up to precision approach are summarized in Table 1. The accuracy requirement for Category I can be achieved most of the time using wide area differential systems such as the American “WAAS”, the European “EGNOS”, and the Japanese “MSAS”. The American Federal Aviation Authority (FAA) is developing a Local Area Augmentation System (LAAS) for categories II and III, involving the ?nal and precision approach phases of ?ight. The system includes at least four reference GPS receivers located at each airport, whereby GPS measurements are collected and processed in real time. The computed GPS differential corrections are sent to aircraft via a (VHF) radio link to calculate its location. LAAS preliminary test results have generally demonstrated accuracy of less than 1 meter. However, the percentage of system availability is still under evaluation. The cost of establishing LAAS for major airports is expected to be significant.

Existing Real-Time Kinematic (RTK) multi-station reference networks can be used as an alternative to the airport LAAS to aid accurate positioning of aircraft during precision approach, takeoff and airport surface navigation. These systems were originally developed for surveying applications. In principle, observations from multiple reference stations covering a large area are gathered and processed in a common network adjustment at a central processing facility and measurement corrections are computed. The corrections are optimized for the coverage area to account for distance dependent errors. A single rover GPS receiver receives these measurement corrections from the control centre of the network and uses the corrections to estimate its position in real-time accurate to the cm-level with fixed integer carrier-phase ambiguity resolution, or to the sub-meter level with a fioat solution. The use of these networks in airborne navigation can be done by mounting the rover receiving the network corrections on the aircraft to determine its positions during flight. The feasibility of this approach is discussed in this article.

The advantages of using multistation reference RTK networks for precise airborne navigation are:

• The multi-station reference networks service can extend to several tens or hundreds of kilometres, thus, each network can cover more than one airport, including small airports, unlike the airport LAAS. In addition to airport navigation, the system can be used in search and rescue operations, emergency landing, road traf?c control from the air,
as well as emergency response.

• RTK networks provide cm to decimetre positioning accuracy even in the case of malfunctioning of some stations. This situation is however more critical in airport LAAS due to the low number of stations used.

• Compared to LAAS, no significant additional infrastructure cost is involved as the hardware and software of the GPS-RTK networks are available in most developed countries and the establishment of new networks is currently underway (or planned) in different regions worldwide.

• RTK networks can give better runway utilization by improving airport surface navigation.

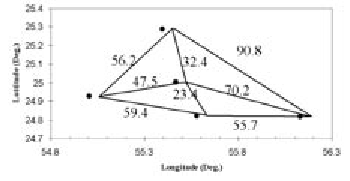

The feasibility of using real-time reference networks for precise positioning in navigation is investigated using a network known as the Dubai Virtual Reference System (DVRS), located in Duabi, UAE. The DVRS network consists of five active reference stations (Figure 1), with baseline lengths varying between 23.4 km and 90.8 km. To compute its position, the rover receiver sends its approximate position via a cellular message to the network control centre where computations are carried out for each user. The estimated network measurement corrections are interpolated for a virtual reference station (VRS) close to the rover position and instantly sent to it. Previous testing of the DVRS system for kinematic ground surveying showed that system positioning accuracy was typically 1-2 cm in planimetry and 3-5 cm in altimetry. For accurate determination of aircraft heights from the ground using GPS-derived ellipsoidal heights, a recently established accurate geoid model for Dubai was utilized.

The duplex communication approach used for the DVRS network puts a restriction on the number of users, as this number is limited by the ability of the control centre to simultaneously perform calculations for different users. The problem can however be alleviated by using a one-directional communication method. In this case, one or two ground transmitters (repeaters) at the airport will be established; they will receive the reference-station measurement corrections from the control centre on-line and send them to the aircraft via VHF modems. The receiver on board the aircraft will then interpolate the corrections at its location. Thus, no restrictions exist on the number of users. The establishment of ground transmitters at the airport can also improve the current availability of the corrections.

Concerns related to the use of RTK networks in airborne navigation include:

• Due to the high dynamics involved in airborne navigation, a high update rate of sending the corrections is needed compared with that implemented for land applications, which currently range between 5 and 70 seconds.

• The format of GPS measurement corrections should be standardized to ensure that the system is independent of any single receiver manufacturer. This can be solved by adopting the RTCM standard for RTK multiple reference stations v3.0.

• The integrity of the system should be continuously monitored, and methods should be implemented to warn the pilot against any deficiency in the system.
