Observability analysis
The accuracy and speed of alignment
is decided by the performance of filter,
which is decided by the observability of
model. So the observability analysis of
model must be performed before filter
can commence. The SINS stationary
alignment model established in this
paper, is a linear time-invariant system
whose observability can be obtained by
the analysis of the observable matrix.
The rank of the observable matrix is
It shows that the model is complete
observable. And the fi lter is
capable of estimating the state
with good performance, therefore,
the model will lead to a high
accuracy and speed of alignment.
Modifi ed Sage-Husa
adaptive Kalman filter
Sage-Husa adaptive Kalman fi lter
algorithm proposed by Sage A P
and Husa G W, is a fi lter algorithm
which can estimate system noise and
measurement noise online in real-time.
However, the algorithm could run well
under the unknown prior statistical
characteristics circumstance. There
are some problems with the algorithm,
such as, 1) stability and astringency
of measurement noise is poor, which
affect stability of state estimation
and fi lter result directly, 2) system noise and measurement noise can’t be
obtained accuracy at the same time,
3) The minus operation would make
the matrix of system noisy estimation
and the matrix of measure noisy
estimation lose half positive or positive,
which will make the fi lter diverge.
In order to solve the problems
analyzed as above, a modified
Sage-Husa adaptive Kalman filter

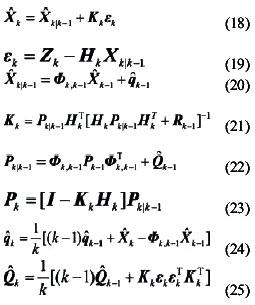

algorithm is proposed as follow
Simulation
During the simulation, parameters of
a medium accuracy IMU are used. Its
details are shown as following.

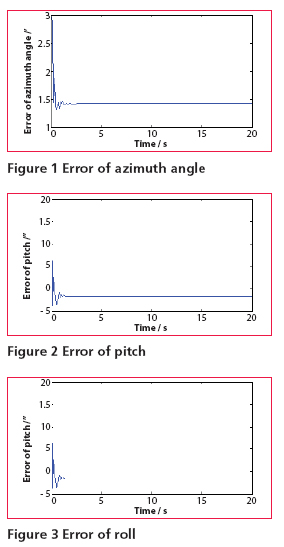

Simulation results are given in figures
1-6, which fi gures 1-3 are the errors
of attitude angle and fi gures 4-6 show
the estimation errors of gyro drift rate.
Figures 1-6 show that the fi lter works
well. After less than 5 s, it have already
converged rapidly. According to the
computer simulation results, the errors
of the two leveling attitude angles
are about 5 ‘’, and the error of the azimuth angle is about 1.5 ‘. Computer
simulation results also verify that the
optimal time of the three misalignment
angles is less than 5 s. Figures 4-6 show
that three gyros drift rate are estimated
accurately. While the traditional
initial alignment have the alignment
accuracy of 10 ‘’ for leveling attitude
angles and 2-5 ‘ for azimuth angle,
with the alignment time of 20-50 s.
|
